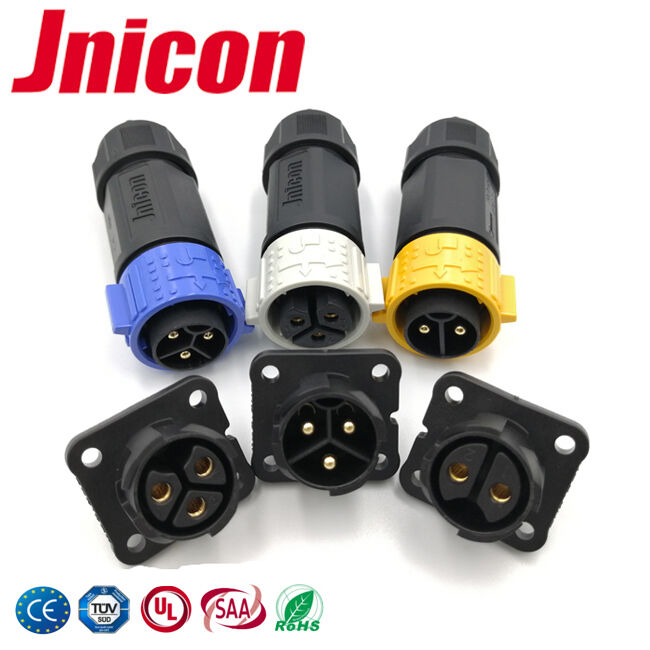

CE approval M25 Waterproof Panel Mount Connector Quick Lock Electrical Power Connectors

Jnicon 3Pin Cable Connector Waterproof Circular Connectors M25 50A

Quick Detail Of Waterproof Circular Connectors

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Contact pin: Screw terminal and soldering terminal available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Colours:Black,blue,white and yellow color supported

6) Cable length:Different cable length could be customized

M25 waterproof Circular connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.

Once assembled, the M25 Outdoor Waterproof Circular Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.

Application Of Waterproof Circular Connectors

Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.

1. LED lighting
2. outdoor soft strip display
3. electrical equipment
4. automated robots
5. electric bicycles
6. Ships
7. electric vehicles

Details and Pin Arrangement
