심천 Jnicon 기술 Co., 주식 회사.
직업적인 방수 연결관 제조자
영업 및 지원:
 |
| 원래 장소: | 중국 심천 |
| 브랜드 이름: | Jnicon |
| 인증: | UL,TUV,CE,ROHS,CQC |
| 모델 번호: | M19 |
| 최소 주문 수량: | 100 (샘플 10쌍) |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 10000/days |
| 제품명: | M19 전기 방수 커넥터 | 방수 수준: | IP67 |
|---|---|---|---|
| 접촉 재료: | 황동 금도금 | 정격전류: | 20A/300V |
| 케이블 직경: | 최대 11mm | 보증: | 5년 |
| 강조하다: | 4 pin M19 waterproof connector,20A automotive power connector,push lock waterproof connector |
||

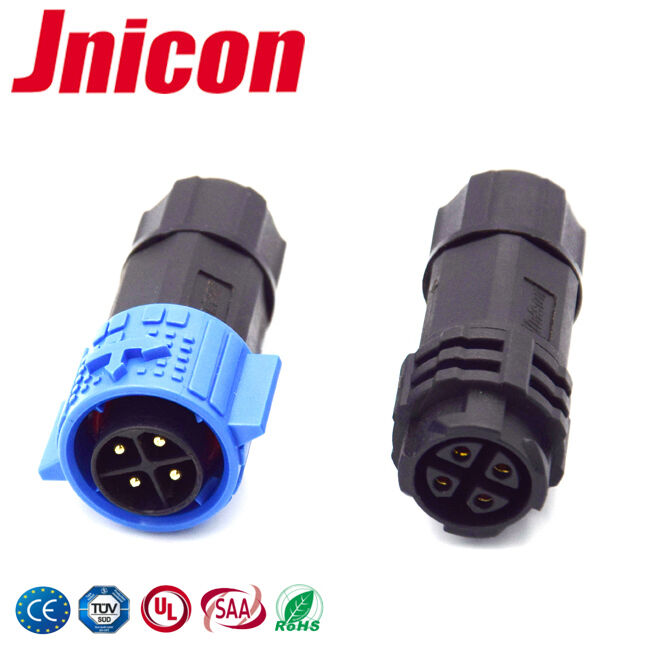

Waterproof Electrical 4 Pin Cable Connector With Male Female
Features to M19 waterproof cable connector
1. Push locking connection mode
2. Protection level: IP67
3. Connection method: soldering(welding),screw terminal
4. Assembly: assembly type, male and female connector.
5. Certification: UL,TUV,RoHS,CQC,CE
6. Warranty: 5 years
7. Color: black, yellow, blue.
Waterproof male female circular connector M19 could be widely used for LED lighting, outdoor display, elctrical equipments, automation machines,robot, ebike, motor etc.
M19 male female connector specification
| Specifications: | |
| Connection way: | Push pull assembly connector |
| Core number: | 4 pin circular connector |
| Connector type : | Assembly male female |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 18AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
| Material: | |
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| Sealed against dust and fluid (IP67) | |
| Vibration resistance, impact resistance, stretching resistance | |
| Dust cover available | |
| Application industries: | ||
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
Waterproof Connector's benefits :
1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.
2.Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
3.With environmental protection material:high performance engineer plastic is good for environmental protection.
4. Long service life to this outdoor waterproof cable connector, it could be used for 5 years-10 years at least.
M19 cable connector's dimension
