심천 Jnicon 기술 Co., 주식 회사.
직업적인 방수 연결관 제조자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Jnicon |
| 인증: | CE,TUV,UL,RoHS |
| 모델 번호: | M19 |
| 최소 주문 수량: | 100 (샘플 10쌍) |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | T/T,Paypal,L/C,Western 통합 |
| 공급 능력: | 10000/days |
| 제품명: | 4 핀력 연결기 | 연결 방식: | 잠금 결합을 추진하세요 |
|---|---|---|---|
| IP 수준: | IP67 | 정격전류: | 20A/300V |
| 강조하다: | 20A waterproof connector push lock,300V M19 waterproof connector,IP67 waterproof DC connector |
||

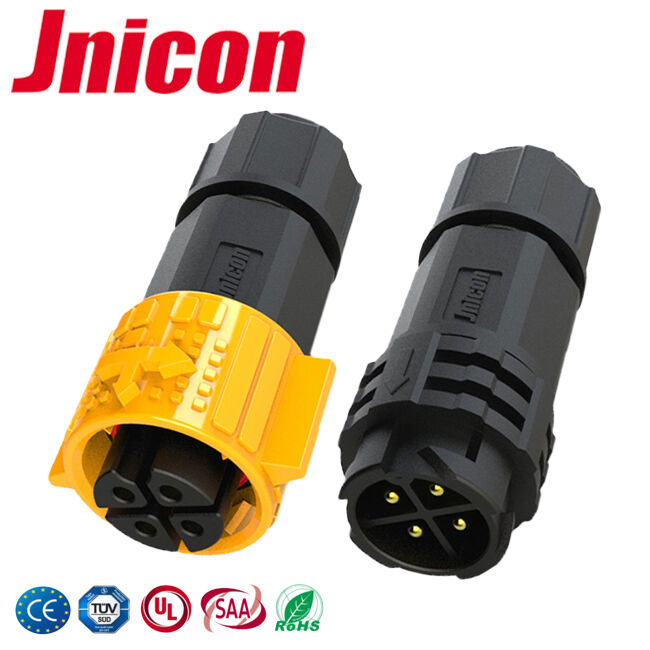

Male And Female Outdoor Waterproof Connector , 4 Pin Bulkhead Waterproof Connector
Features
1. Bulkhead waterproof connector could be easy install and disassemble, IP67 waterproof level could be well protected for your application.
2. Multicore: 2,3,4,5,6,7,8,9 and more.
3. Connection method: soldering(welding), screw terminal
4. Dustproof cover available under off-working condition.
5. Certification: UL,TUV,RoHS,CQC,CE
Technical Specification
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm(18AWG-12AWG) |
| Core number: | 2 pin,3pin,4pin , more pins optional |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Service | Cable length could be customized |
Main characteristics:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover to male and female are available |
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charge | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicles | Ebike/motorcycle |
| Communications | Heavy truck | Transportation |
Product Benefits
1. Widely used for Outdoor applications, such as land scape LED light, led strips, wall washer bar, Audio and video, Telecommunication, Marin, factory automation control, wireless bridge and other places need waterproof power extension use, even underwater or underground both could be well used.
2.Flexiable plug and unplug the connector, let your installation and repair more easy and simple, save your much cost.
