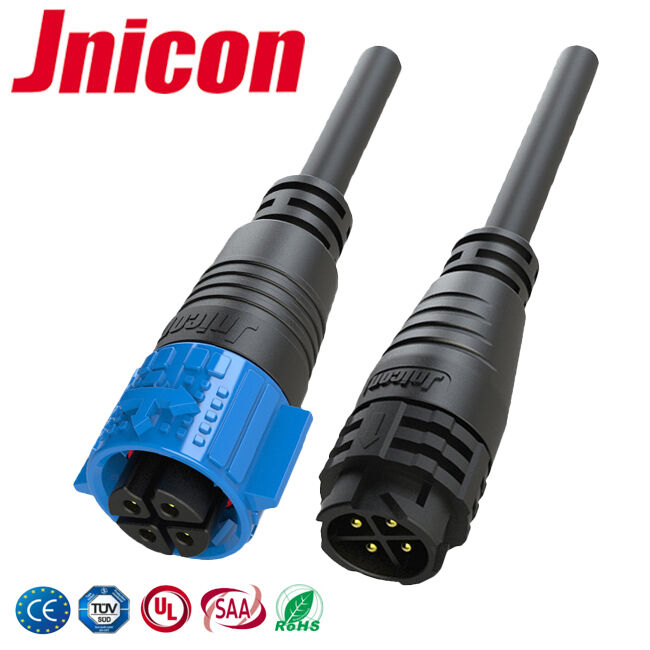

Name: M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

홈 제품 소개 방수 철사 연결관

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector

제품 상세 정보:

원래 장소:	중국 심천
브랜드 이름:	Jnicon
인증:	UL,TUV,CE,ROHS,CQC
모델 번호:	M19

결제 및 배송 조건:

최소 주문 수량:	100 (샘플 10쌍)
가격:	negotiable
포장 세부 사항:	1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라
배달 시간:	3-5 영업일
지불 조건:	L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력:	10000/days

접촉

상세 제품 설명

Product name:	M19 push pull waterproof connector	기능:	전기 전도성
정격전류:	20A/300V	케이블 사양:	16-12AWG
방수 수준:	IP67	하우징 재료:	난연성 플라스틱
강조하다:	M19 waterproof wire connector , 4Pin 20A push pull connector , ODM waterproof power connector

Push Pull IP67 Waterproof Connector With 4 Pin Male Female Plug Connector

Features to 4 pin waterproof connector

Push pull locking connection mode
Protection level: IP67
Connection method: soldering(welding),screw terminal
Assembly: male plug with female plug
Certification: UL,TUV,RoHS,CQC,CE
Function : power extension
Color: black, yellow, blue.

M19 4 pin waterproof male female connector could be well used for LED lighting, power extension,Audio video, elctrical equipments, automation machines,robot, ebike, motor etc.

M19 4 pin connector specification

Specifications:
Connecting mode:	Push pull locking waterproof connector
Core number:	4 pin
Connector type :	Assembly Panel mount connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Withstand voltage (AC.V)1min:	1500V

Application industries:
Stage equipment	The smart grid	LED lighting
Medical equipment	Battery	Automation
Solar energy equipment	Ship equipment	Agriculture

4 pin waterproof connector's benefits :

1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector 0
