심천 Jnicon 기술 Co., 주식 회사.
직업적인 방수 연결관 제조자
영업 및 지원:
 |
| 원래 장소: | 중국 심천 |
| 브랜드 이름: | Jnicon |
| 인증: | UL,TUV,CE |
| 모델 번호: | M19 |
| 최소 주문 수량: | 100 (샘플 10쌍) |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 1. 비닐 봉투, 2. 판지, 3. 고객의 요구 사항에 따라 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력: | 10000/days |
| 정격전류: | 20A 최대 | 케이블 사양: | 16AWG-12AWG |
|---|---|---|---|
| 제품명: | M19 전기 남성 여성 커넥터 | 연결 방법: | 방수 커넥터를 잠가 추진하세요 |
| 보증: | 5년 | 재료: | PPA |
| 강조하다: | 2Pin M19 waterproof wire connectors,M19 electrical push locking connectors,300V DC waterproof wire connectors |
||

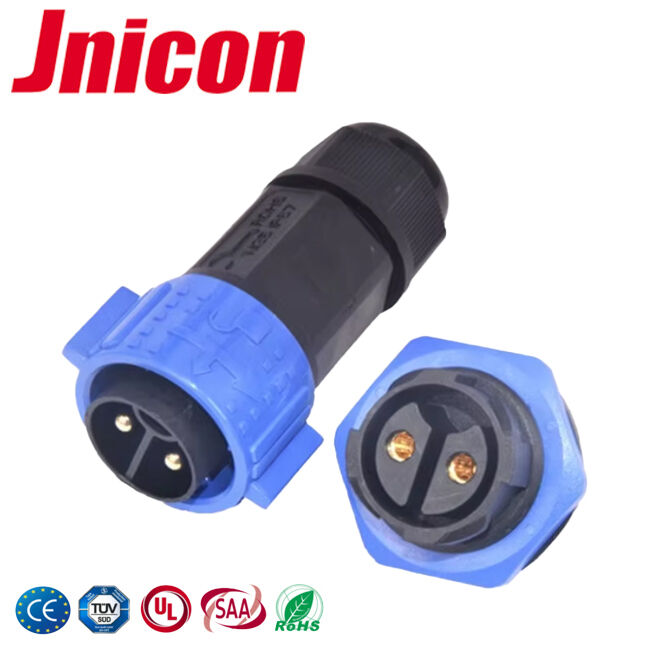

Electric Male Female 2 Pin Waterproof Circular Connectors For Underwater Lights
M19 2 pin male female connector
1. Push locking connection mode
2. Protection level: IP67
3. Connection method: soldering(welding),screw terminal
4. Assembly: assembly type, male and female connector.
5. Certification: UL,TUV,RoHS,CQC,CE
M19 2 pin male female circular connector could be widely used for LED lighting, outdoor display, elctrical equipments, automation machines,robot etc.
M19 Connector Technical Specification
| Specifications: | |
| Connection way: | Push pull locking waterproof connector |
| Core number: | 2 pin circular connector |
| Connector type : | Assembly connector |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 18AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
| Material: | |
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| Sealed against dust and fluid (IP67) | |
| Vibration resistance, impact resistance, stretching resistance | |
| Dust cover available | |
Waterproof Connector's benefits :
1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2.Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
3.With environmental protection material:high performance engineer plastic is good for environmental protection.
M19 male female connector's dimension
