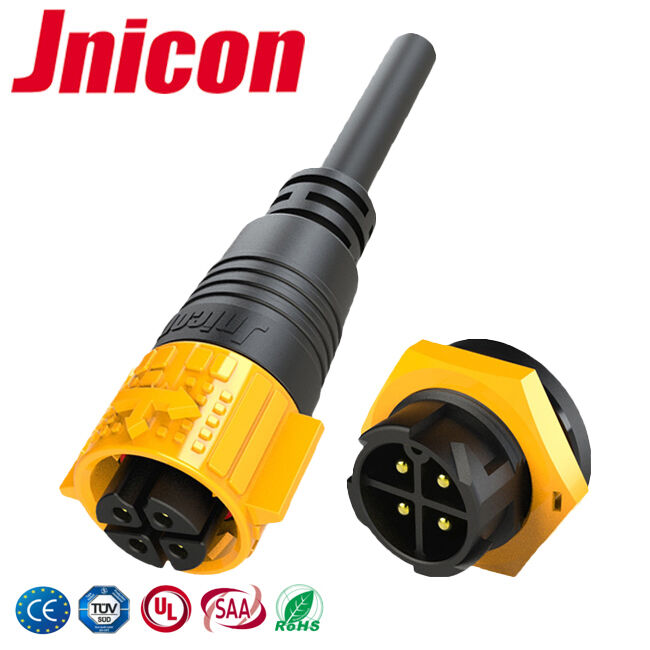

IP67 Waterproof Outdoor Cable Connector M19 2 3 4 Pin Male Female Socket

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Jnicon
인증:	CE,TUV,UL,RoHS
모델 번호:	M19

결제 및 배송 조건:

최소 주문 수량:	100 (샘플 10쌍)
가격:	negotiable
포장 세부 사항:	고품질 수출 상자
배달 시간:	3-6 일로 일합니다
지불 조건:	L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력:	10000/days

접촉

상세 제품 설명

폴란드:	2핀, 3핀, 4핀 등	커넥터 유형:	남성 여성 플러그 커넥터
현재 등급:	20A	케이블 범위:	최대 12mm
연결 방법:	잠금식을 추진하세요	보호 수준:	IP67
강조하다:	IP67 waterproof M19 cable connector , outdoor waterproof plug socket , M19 4 pin male female connector

Jnicon IP67 Waterproof Wire Connectors , Outdoor Electric Male Female Plug

Product Features

IP67 Protection waterproof plug connector
Overmolded male female plug connector
20A current rating for high amps applications.
Different colors are optional to help you distinguish the output and input .
Push locking connection method, easy and simple to install and operate.

Waterproof wire connectors could be 2 pin,3pin,4 pin or more, we could do the cable process and solder the cable, one-stop service for you.

Other types connection also available, such as panel mount type, assembly type, field type connection.

OEM and ODM accepted.

Technical Spec as below

Connector type :	overmolded power wire connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable size:	20AWG-12AWG
Cable diameter:	4.5mm-12mm
Contact diameter*No.	Φ1.0-Φ2.4
Current rating:	20A
Operating voltage (AC.V.rms):	500V

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

Application & benefits to waterproof wire connector:

1. Cable length could be customized according to your requirements, it's great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.

2. Panel socket is available, you could install it on wall or PCB , flange type is optional.

3. Screw locking design, easy connection, convenient install, DIY tools, N for Neutral wire, G for Ground wire, L for live wire.

4. IP67 protection level, moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.

5. Long service life to connectors, do not need to replace it always.
