심천 Jnicon 기술 Co., 주식 회사.
직업적인 방수 연결관 제조자
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | Jnicon |
| 인증: | UL/TUV/CQC/CE |

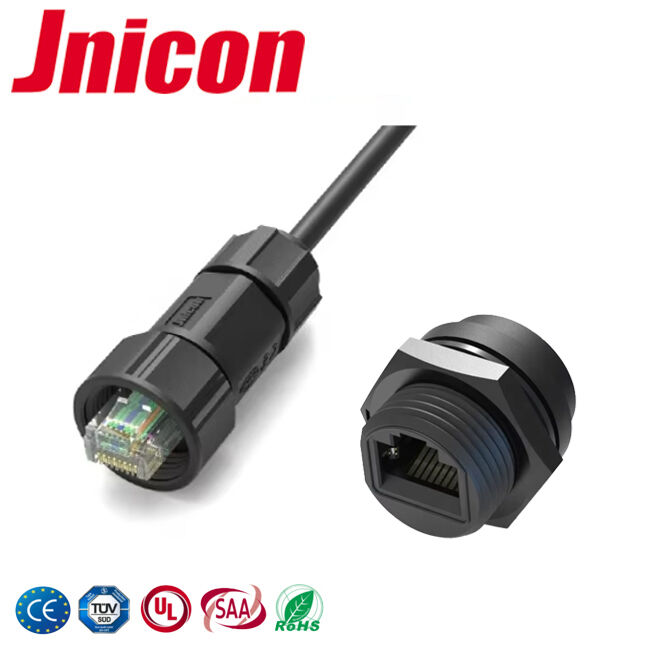

| 모델 번호: | Ethercon RJ45 방수 커넥터 |
| 최소 주문 수량: | 100 (샘플 10쌍) |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 1. 비닐 봉투; 2.Carton;3.고객의 요구 사항에 따라 |
| 배달 시간: | 3-5 영업일 |
| 지불 조건: | L/C, T/T, 페이팔, 웨스턴 유니온, L/C, D/A, D/P, T/T |
| 공급 능력: | 10000pcs/일 |
| 신호 전송 속도: | Cat5e/캣 6 | 자격증: | UL/TUV/CE/ROHS |
|---|---|---|---|
| 연결 모드: | 플러그를 뽑다 | 접촉 핀: | 구리 합금 (금도금) |
| 강조하다: | UL PA66 nylon M19 RJ45 connector,screw locking waterproof RJ45 connector,Cat5e waterproof M19 connector |
||
Description of CCTV Waterproof Connectors For signal
Main Characteristic:
1. Compliance with D level or CAT 5e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e,data transfer rate reach 10GBIT/S
2. Multi-style connecting modes:straight dual etherne port, 90 degree, PCB type and pin header type available
3. Applicable for harsh environments.
4. Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5. Sheath of cable applicable for common RJ45 plugs.
6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.
7. Electroplated shell against wind and rain.
8. Shielding system with high frequency noise immunity and electromagnetic interference protection.
Application
| Technical Parameters | |
| Connecting mode | Quick push pull Locking |
| Protection level | IP65 |
| Cable specification | 0.15mm2~0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Current rating(A) | 5A |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Materials | |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
1. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.
2. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
3. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
4. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
